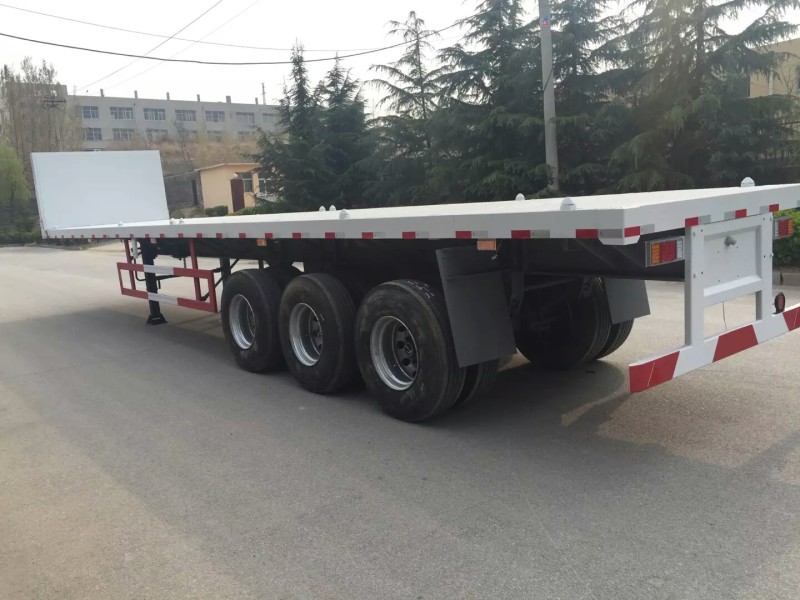

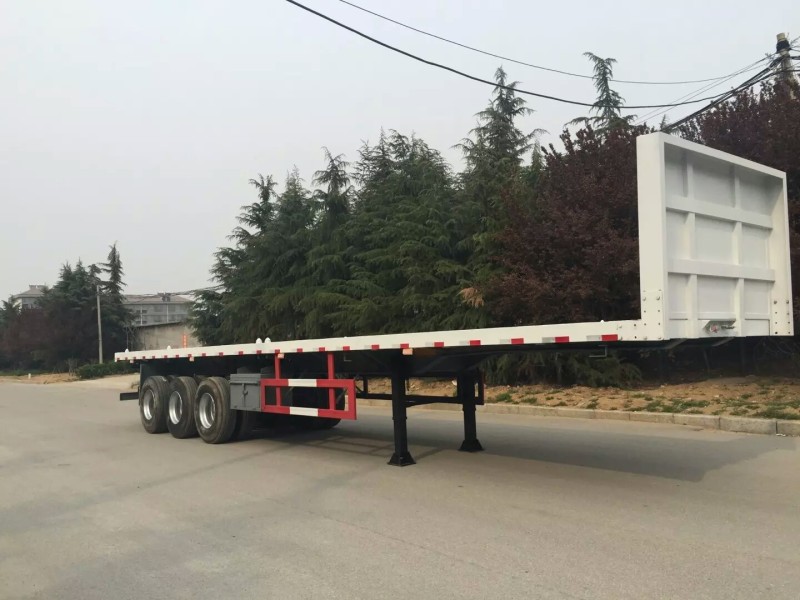

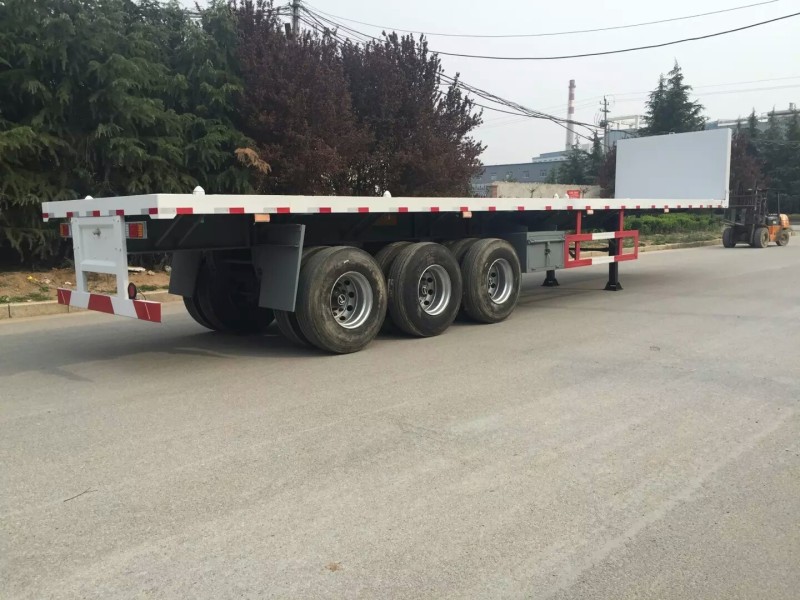

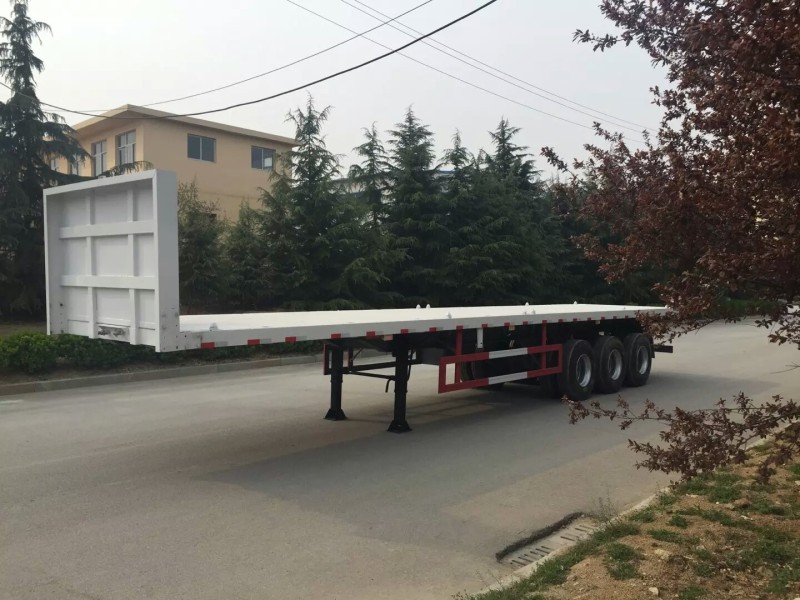

FLATBED SEMI TRAILER |
|
|||||||||||||||
|
DIMENSIONS |
||||||||||||||||
|
Tare weight |
7000kg |
Payload |
40000 kg |
|||||||||||||
|
Overall length |
12500mm |
Overall width |
2500mm |
Overall height |
1600mm |
|||||||||||
|
SPECIFICATION |
||||||||||||||||
|
Chassis |
Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 14mm,width140mm;Middle Flange 6mm;bottom flange16mm,width 140mm |
|||||||||||||||
|
Axle |
Number |
3 |
Brand |
Fuwa |
Capacity |
13T |
||||||||||
|
Suspension |
Mechanical suspension or air suspension |
|
||||||||||||||
|
Leaf spring |
Leaf spring or air bag |
|||||||||||||||
|
Floor |
3mm |
|||||||||||||||
|
Tire |
12R22.5 |
|||||||||||||||
|
Wheel rim |
9.75 |
|||||||||||||||
|
Kingpin |
2’’ bolt-in king pin |
|
||||||||||||||
|
Landing gear |
two-speed,manual operating ,heavy duty landing gear |
|||||||||||||||
|
Twist lock |
12 no.of ISO twist lock for 1x20ft,2x20ft,1x40ft container |
|||||||||||||||
|
Vehicular applications |
Container (20ft.40ft..) transport |
|||||||||||||||
|
Drawing and packing |
Including |
|||||||||||||||
|
Braking system |
RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
|||||||||||||||
|
Paiting |
Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
|
||||||||||||||
|
Accessories |
One standard tool box |
|||||||||||||||
|
Price |
杨嘉的出厂含税价:6.5万左右 |
|
|
|
||||||||||||
